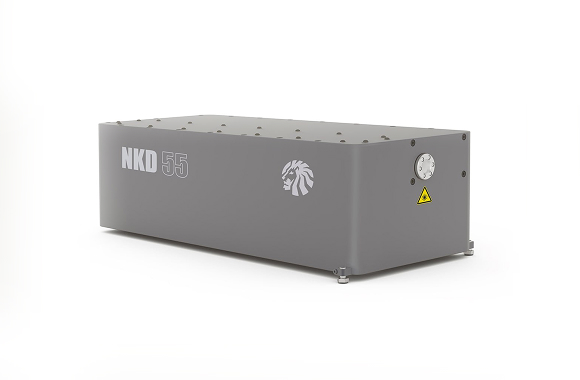

UV Nanosecond Laser NKD series
NKD5 / NKD30 / NKD55
High Power UV Nanosecond Laser up to 55W
All-in-one compact design
The specially designed housing
Engineered for industrial operation
Low power consumption
Excellent beam quality (M² < 1.3)
Extended crystal life, enhanced performance, and greater stability
Built-in UV beam expander
Extended service intervals
UV Nanosecond Laser

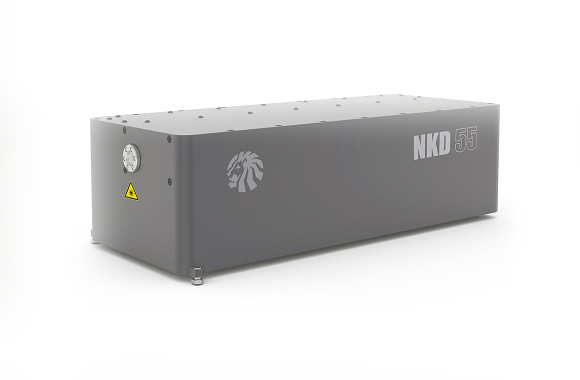

UV Nanosecond Laser NKD series
The NKD Power UV Laser features an all-in-one integrated design and a sealed enclosure, providing reliable performance even under demanding industrial conditions
- The specially designed THG unit significantly extends the system's service life while maintaining long-term performance and stability
- Designed for precision laser processing lines, these lasers deliver up to 55 W of optical power in a TEM₀₀ beam, enabling high-speed and high-quality industrial processing
- Available in multiple configurations, the NKD Power Laser is designed for easy integration and reduced total cost of ownership — minimizing maintenance requirements and ensuring maximum reliability in demanding production environments
Specifications
| Model | NKD5 | NKD30 | NKD55 |
|---|---|---|---|
| Wavelength, nm | 355 | ||
| Average power, W | 5 | 30 | 55 |
| Maximum pulse repetition rate | up to 50 kHz | up to 300 kHz | |
| Pulse width, ns | 20 | 10–15 | |
| Pulse stability, % RMS | ± 3 | ||
| Spatial Mode | TEM00 | ||
| Beam Quality M² | ≤ 1,3 | ≤ 1,2 | |
| Beam diameter (1), mm | 1,5 | 3,5 | |
The specification is subject to change without notice
(1) Pulse durations from 300 ps up to 950 ps are available on demand
Applications
-
Copper wire coating removal
-
ABS film cutting
-
Rubber and polymer processing
-
PCB / FPCB depaneling and cutting
-
Drilling and scribing of ceramic materials
-
Carbon fiber cutting and shaping
-
Fine surface texturing and micromachining
-
Non-destructive UV marking of plastic materials
