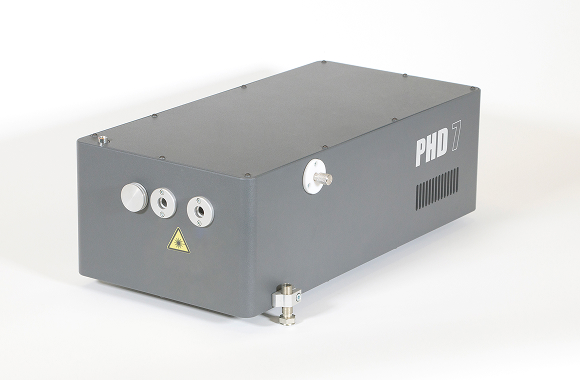

PHD-7
500 ps | 7 mJ | 100 Hz
The PHD-7 represents a series of compact picosecond Nd:YAG lasers designed to meet the demanding requirements of both scientific research and industrial application
Its industrial-grade design, compact dimensions, and air-cooled operation ensure high stability of output parameters and make it ideal for OEM integration

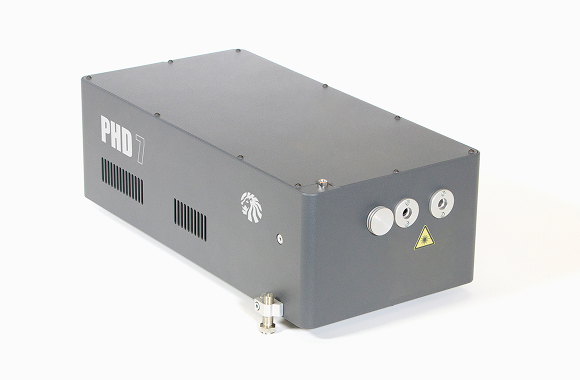

PHD-7 - Compact Picosecond Nd:YAG laser
High pulse energy
Pulse duration < 500 ps
Single Mode (SLM) operation
Adjustable pulse repetition rate up to (1–100 Hz)
High peak power > 15 MW
Guaranteed lifetime > 3×10⁹ pulses
Compact and air-cooled design
Easy integration and control
PHD-7 - Compact Picosecond Nd:YAG laser
With pulse durations shorter than 500 picoseconds and pulse energy exceeding 7 mJ, the PHD-7 Single Mode (SLM) laser delivers excellent performance across a wide range of applications
- Its adjustable pulse repetition rate allows flexible use—from single-shot operation to 100 Hz modes—making it suitable for spectroscopy, fluorescence studies, supercontinuum generation, and environmental monitoring
- Depending on configuration, the laser operates in visible (532 nm) and ultraviolet (355 nm, 266 nm) ranges, offering high versatility for research and applied fields alike
- The robust monolithic construction ensures mechanical and thermal stability, allowing reliable long-term operation even in challenging environments
Specifications
| Model | PHD-7 |
|---|---|
| Pulse repetition rate, Hz | 100 |
| Pulse energy, mJ / at 1064 nm | ≥ 7 |
| Pulse energy, mJ / at 532 nm | ≥ 4 |
| Pulse energy, mJ / at 355 nm | ≥ 1,5 |
| Pulse energy, mJ / at 266 nm | ≥ 1,0 |
| Pulse duration (1), ps | ≤ 500 |
| Beam diameter, mm | 2,5 ± 0,5 |
| Beam quality (M²) (1) (2), no more than | 1,5 |
| Mode composition | SLM |
| Output energy stability (RMS), %, no worse than / at 1064 nm | < 1% |
| Output energy stability (RMS), %, no worse than / at 532 nm | < 2% |
| Output energy stability (RMS), %, no worse than / at 355 nm | < 3% |
| Output energy stability (RMS), %, no worse than / at 266 nm | < 5% |
| Cooling system | Air cooled |
| Power supply, W (220±20 V, 50-60 Hz) | ≤ 1000 |
| Laser head with harmonic generator unit (L×W×H), mm | 435 × 245 × 155 |
| Power supply unit (L×W×H), mm | 435 × 410 × 190 |
The specification is subject to change without notice
(1) Specified at 1064 nm
(2) Pulse durations from 300 ps up to 950 ps are available on demand
Applications
-
Medicine and biotechnology
-
Surface disinfection
-
Laser-induced breakdown spectroscopy (LIBS)
-
Pollution and gas monitoring
-
Remote sensing
-
Supercontinuum generation
-
Gas ignition systems
-
Fluorescence and DNA analysis
