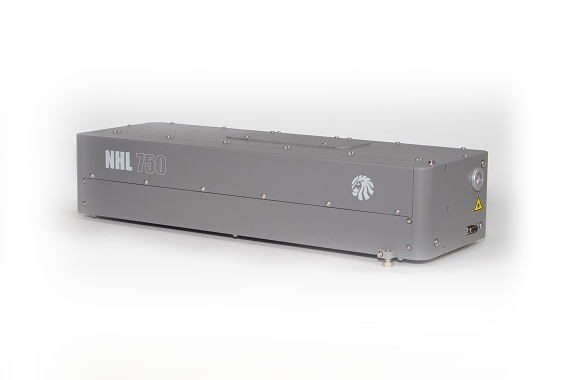

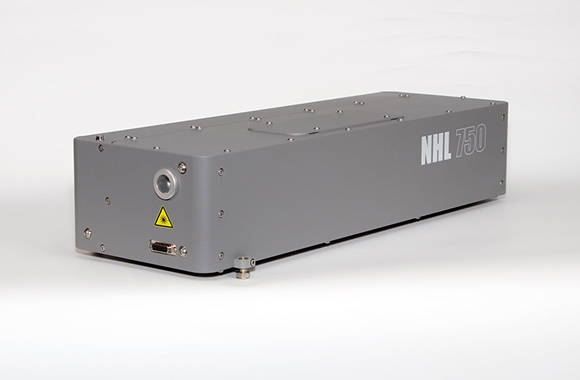

NHL-750

750 mJ | 20 Hz

Thanks to the modular design and wide range of Nd:YAG pumping lasers, such systems can be easily adapted and optimized for specific scientific, medical and industrial tasks

Their advanced optical configuration ensures exceptional beam quality and pulse-to-pulse stability, combining high energy output with elevated PRR for demanding scientific and industrial applications

This makes the NHL-750 laser the ideal choice when both energy and precision are equally critical

Optimal balance of pulse energy and PRR

Single-axis output of all harmonics

Temperature stabilization

Extended service intervals

Easy integration and control

NHL-750

The NHL-750 laser meet all modern requirements for this class of equipment

Incorporate a number of features that simplify operation and expand functionality

Integrated energy meters continuously monitor pulse energy at any selected wavelength, ensuring precise real-time control without the need for external devices. This allows for compact OEM integration and frees external equipment for other measurement tasks

Specifications

Model	NHL-750
Pulse repetition rate, Hz	10 or 20	10 or 20 TEM00 version
Pulse energy, mJ / at 1064 nm	750	140
Pulse energy, mJ / at 532 nm	400	75
Pulse energy, mJ / at 355 nm	200	40
Pulse energy, mJ / at 266 nm	100	22
Pulse energy, mJ / at 213 nm	25	5
Pulse duration ⁽¹⁾, ns	16 ± 2	10 or 20
Divergence ⁽¹⁾, mrad	≤ 1,0
Beam diameter ⁽¹⁾, mm	≤ 8	≤ 5
Pulse energy stability ⁽¹⁾, %	± 1,5
Jitter ⁽¹⁾ ⁽²⁾, ns	± 1,0
M2	—	≤ 2,5
Cooling system	Water-air
Power supply, W (220±20 V, 50-60 Hz)	1500
Laser head (L×W×H), mm	685 × 240 × 145
Power supply unit (L×W×H), mm	755 × 360 × 690

The specification is subject to change without notice

(1) Specified at 1064 nm

(2) Measured relative to the external trigger pulse of the Q-switch

Applications

Ablation
LIBS
LIDAR
Shockwave generation
Photochemistry
Pumping
Material processing
Laser ultrasonics
