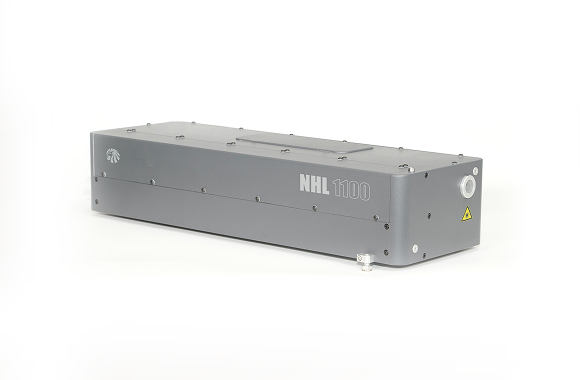

NHL-1100
1100 mJ | 20 Hz
The NHL-1100 laser is designed for industrial and scientific applications that require high pulse energies in the Joule range
Built on a Master Oscillator Power Amplifier (MOPA) architecture, the NHL-1100 laser ensures exceptional energy stability and component longevity by reducing the load on all optical elements
Key Features
High output energy
Single-axis output of all harmonics
Temperature stabilization
Extended service intervals
Easy integration and control
The NHL-1100 laser series
The NHL-1100 laser series meets modern requirements for high-energy solid-state lasers while offering a set of unique advantages that make it a reliable and versatile solution for a wide range of applications
- Integrated energy meters allow real-time pulse-energy monitoring at any selected wavelength. High-accuracy measurements reduce the need for external diagnostic tools and simplify integration into OEM systems
Specifications
| Model | NHL-1100 | |
|---|---|---|
| Pulse repetition rate, Hz | 10 | 20 |
| Pulse energy, mJ / at 1064 nm | 1100 | 1000 |
| Pulse energy, mJ / at 532 nm | 650 | 550 |
| Pulse energy, mJ / at 355 nm | 330 | 300 |
| Pulse energy, mJ / at 266 nm | 200 | 180 |
| Pulse energy, mJ / at 213 nm | 45 | 40 |
| Pulse duration (1), ns | 12–15 | |
| Divergence (1), mrad | ≤ 1,5 | |
| Beam diameter (1), mm | ≤ 8 | |
| Pulse energy stability (1), % | ± 1,5 | |
| Jitter (1) (2), ns | ± 1,0 | |
| Cooling system | Water-air | |
| Power supply, W (220±20 V, 50-60 Hz) | 2000 | |
| Laser head (L×W×H), mm | 715 × 300 × 145 | |
| Power supply unit (L×W×H), mm | 755 × 400 × 690 | |
The specification is subject to change without notice
(1) Specified at 1064 nm
(2) Measured relative to the external trigger pulse of the Q-switch

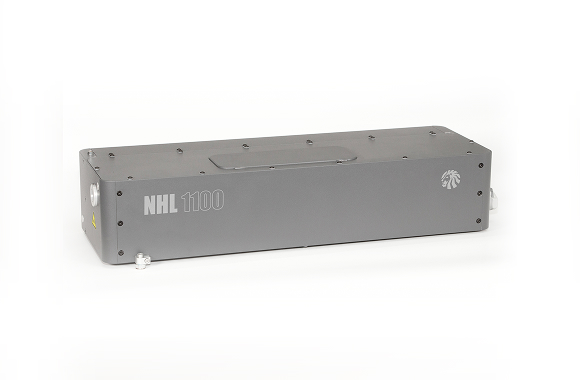

Applications
-
Laser-Induced Breakdown Spectroscopy (LIBS)
-
Laser-Induced Shockwave / Ultrasonic generation
-
LIDAR and remote sensing
-
Ablation and micromachining
-
Photochemistry
-
Optical pumping
-
Advanced materials processing
